Wet area fit-out made easy
Imagine outfitting a large End of Trip facility and visualising, quantifying, and producing quality documentation in just minutes!
- Fast and accurate placement
- Swap out fixtures to optimise and test the design
- Accurate quantification and scheduling
- Standards compliance (ASNZS 1428)
- Improved model performance
- Smaller more powerful library
Revit® Families for Wet Areas, Wayfinding, & Accessibility
Bypass the hassle of searching through limited manufacturer content. Our highly parametric content enables representation of thousands of configurations with just a few components.
Suite Components

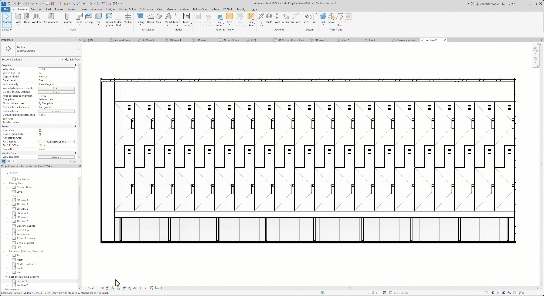

Unlock versatility with our 24 intelligent Autodesk® Revit® amenity and accessibility families, capable of handling thousands of configurations. Effortlessly model and document end-of-trip facilities, commercial and residential amenities, and address all your wayfinding needs in minutes, not days!

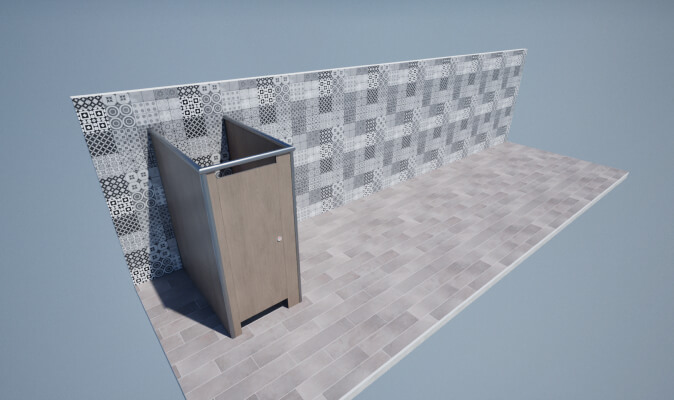

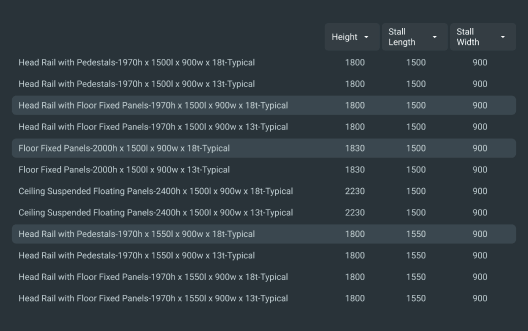

Place toilet cubicles of various styles in seconds using our line-based component. Enjoy independent control over end conditions, allowing customisation for ambulant or accessible use and fixture adjustments.

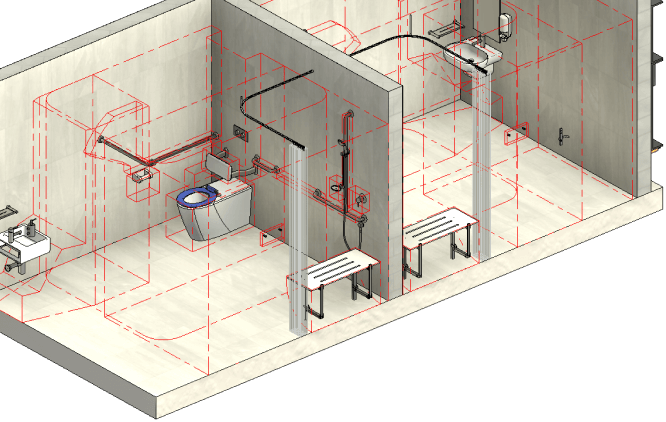

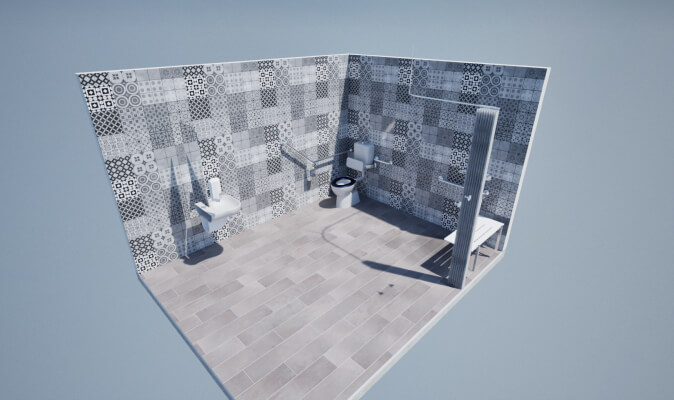

Craft the ideal accessible bathroom with ease. Control fixture positioning within code restrictions, and customise the facility with options for showers, toilets, or basins, ensuring maximum flexibility.

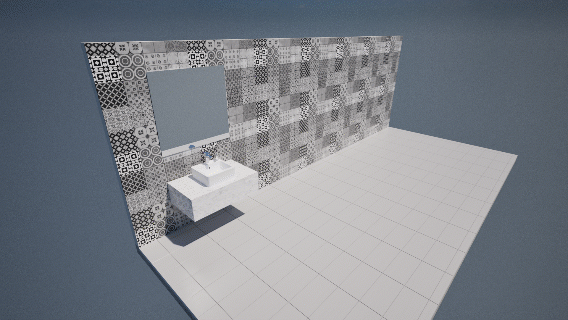

Position your vanity bench with 1+ basins, all tapware and fixtures (selecting from a range of options).
Position your vanity bench with 1+ basins, all tapware and fixtures (selecting from a range of options).
Position your vanity bench with 1+ basins, all tapware and fixtures (selecting from a range of options).
Position your bank of vanity wall basins, all tapware and fixtures (selecting from a range of options including bottle traps or shrouds).
Perfect for fitting out change rooms, choose between Wall or Island benches with or without robe hooks or supports for lockers above.
Particularly useful in residential modelling, this hob has options for finishes and their thickness to the top and sides including the structure.
The only locker family you’ll ever need! Line-based, 1-6 lockers per bay, vents, hardware, kick panels and so much more!
Our line-based families make everything so simple. Control the end bays separately, all fixtures and fittings, seating and more.
Line-based urinals. Take control of fixtures, choose partition options, or opt for an open layout—all ready for documentation.
Optimised for residential design, this single glass shower compartment provides size controls, and display left or right sides with adjustment for adjacent bath hobs.
Complimenting the Urinal stalls, our line-based trough provides options for recessing, wall mount and mitred corner conditions.
Our completely scalable International Symbol for Access signage family. Adjust to any size.
Our completely scalable International Symbol for Deafness signage family. Adjust it to any size!

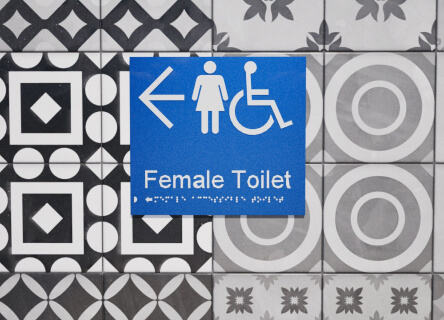

23 signage combinations utilising detail control at its best. At the finest detail see the correct braille, at coarse just the panel.
8 signage combinations for wayfinding of entries, public and private access, and theatres. All with amazing detail control.
From displaying braille detail to a simple box, this Revit® family can suit all your requirements. 24 combinations available.
Tactile ground surface directional indicators. Choose between tiles or surface mounted studs.
Tactile ground surface hazard indicators. Choose between tiles or surface mounted studs.
A 2D detail component representing the clearance for the continuous accessible minimum height and width for path of travel.
AS1428.1:2021 Figure 2

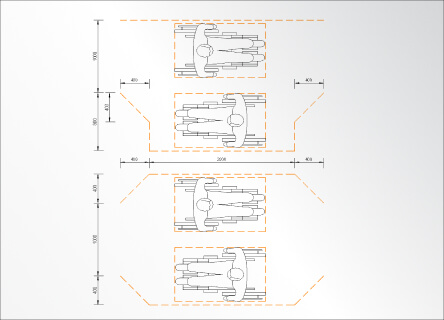

A 2D detail component representing the clearance for the passing space for wheelchairs.
AS1428.1:2021 Figure 3

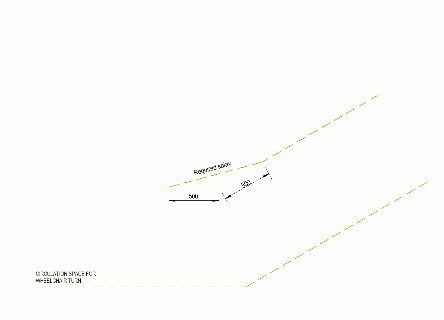

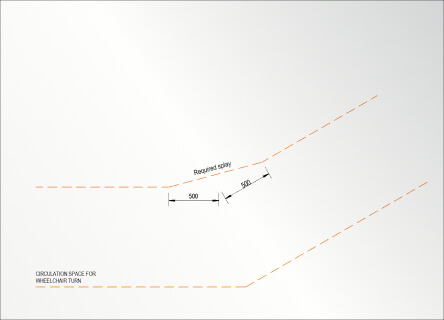

A 2D detail component representing the circulation space required for wheelchair turns.
AS1428.1:2021 Figure 4

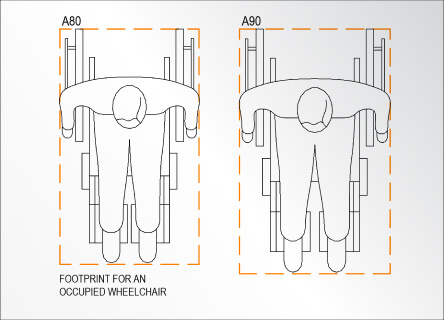

A 2D detail component representing an occupied footprint of a wheelchair for A80 & A90 sizes. AS1428.1:2021 Figure 1
Minimum system Requirements
We build our content in previous Revit® releases to support the most projects. We understand sometimes projects are kept in older releases.
Supported Releases
- Autodesk® Revit® 2020 onwards
Languages
- English
- There are locale specific Type Catalogues for some suites.
